Piling in Lancaster
Mini Piling Contractor in Lancaster
We are piling contractors for home extensions, new build houses and commercial units all around Lancaster and the wider area including Morecambe & Preston . If you require mini piling or underpinning then send us whatever plans you have and we will get back to you with a quote usually within the day. If you want it urgently, give us a ring, We can pile in restricted access sites like back gardens with narrow openings or inside buildings.
We pile for a number of reasons, with the biggest reasons around Lancaster being trees/drains nearby or backfill present and good ground being too costly to dig to. Also a lot of the new houses around the quay have been originally piled, with the piles going very deep. Working alongside structural engineers and building control, we install piled foundation to the correct specification ensuring your building has the support it needs. We can either provide a structural engineers design or work to one you already have. If you want want any information beforehand, I am always happy to have an informal conversation, either by phone or whatsapp/message/email.
Piles Installed

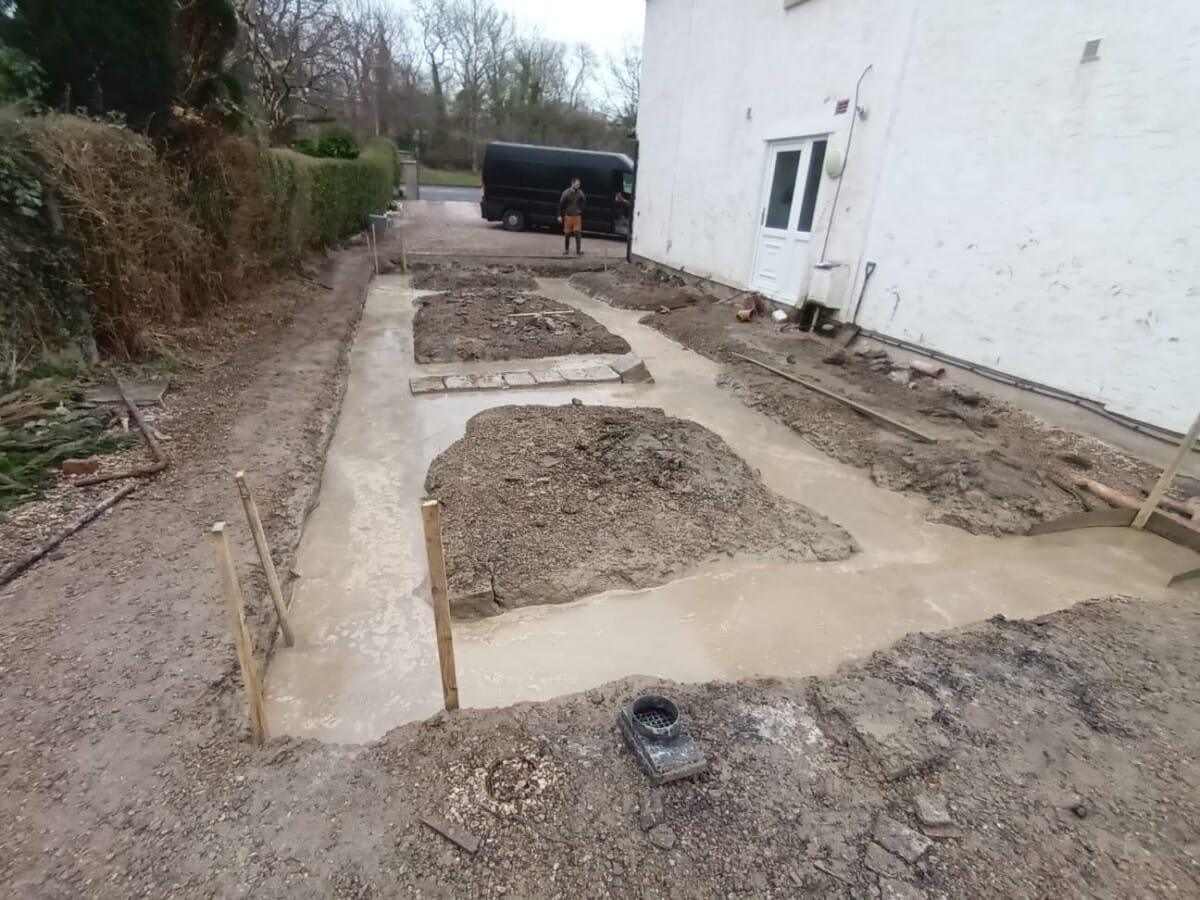

Mini piles have been installed using the Grundomat mole on this large detached garage at Melling. Depths ranged from 6 metres to 9 metres. The main contractor Trafalgar Projects, dug the job out.

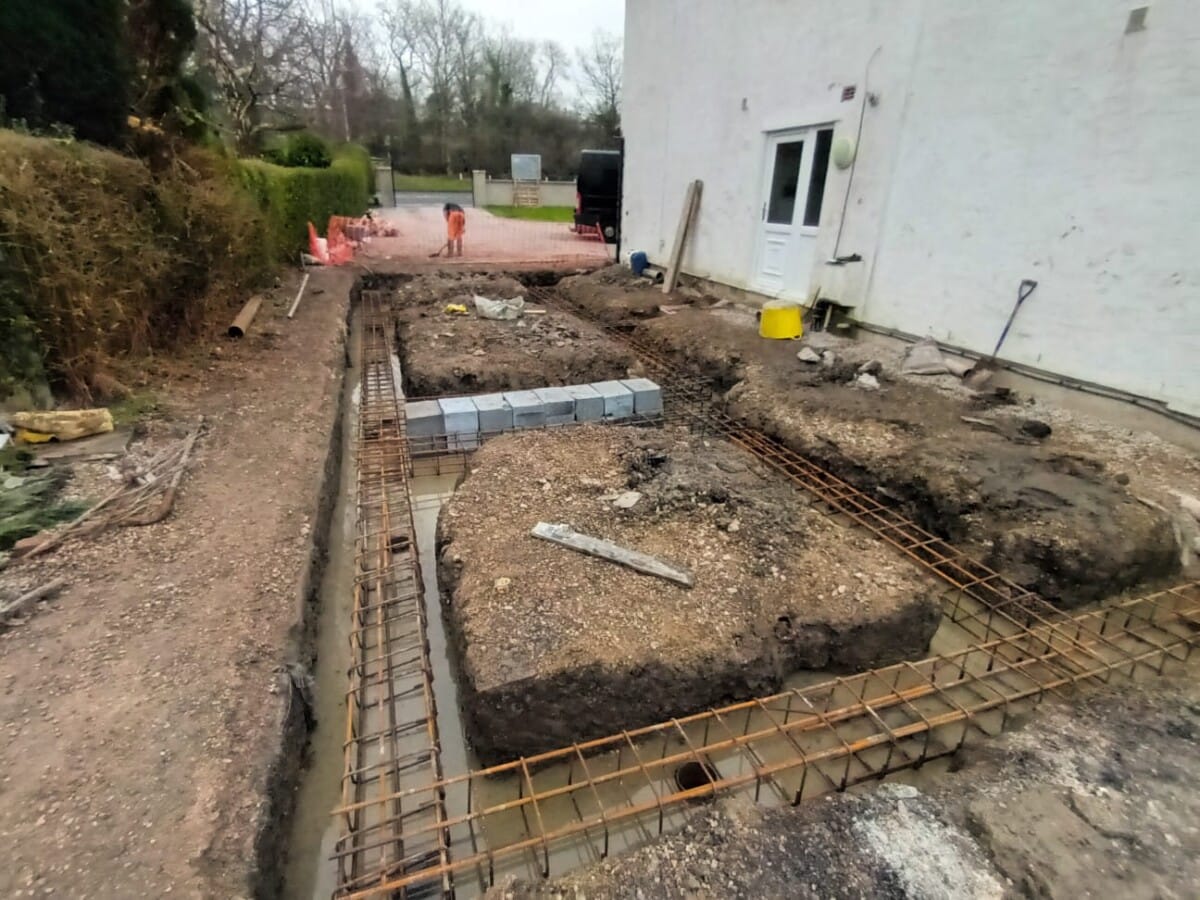

Steel reinforcement on piled foundation
We have constructed the reinforcement in accordance with the structural engineers design and installed it. Shuttering has also been spaced around the cages. It is ready to be inspected by building control at this stage.
Concreted reinforced ground beam
Here we have nearly finished concreting the ground beam. The concrete is vibrated to ensure the piles are full and any trapped air released. We also use the laser level to give a nice flat surface for the bricklayer to work on.
Piling for home extension near Lancaster
Piling Lancaster –This home extensions was just north of Lancaster in Carnforth. Originally the piled design was for a single story extension, but sometimes dependent and the shape and size of the extension, only a few extra are needed to make it capable of holding the weight of a double storey. In the end, they did build a double storey extension. Here we have piled it and put in the cages, ready for it to be inspected by building control.
Piled foundation in Lancaster
Once the inspector has been and given the OK, the job is then concreted. Water was pumped out but was continually entering the trench as there was a canal over the road. Here we have used a vibrating poker on the concrete in order to expel trapped air and it has been leveled with the aid of a laser.
We're specialists in:
– Piled Foundations
– Mini Piling
– Underpinning
– Residential and Commercial
– 100mm to 323mm piles
– Grundomat Piling
